Advantages of two quantum programming platforms in quantum computing and quantum chemistry

Abstract

Quantum computing is at the forefront of technological advancement and has the potential to revolutionize various fields, including quantum chemistry. Choosing an appropriate quantum programming language becomes critical as quantum education and research increase. In this paper, we comprehensively compare two leading quantum programming languages, Qiskit and PennyLane, focusing on their suitability for teaching and research. We delve into their basic and advanced usage, examine their learning curves, and evaluate their capabilities in quantum computing experiments. We also demonstrate using a quantum programming language to build a half adder and a machine learning model. Our study reveals that each language has distinct advantages. While PennyLane excels in research applications due to its flexibility to adjust parameters in detail and access multiple sources of real quantum devices, Qiskit stands out in education because of its web-based graphical user interface and smaller code size. The codes and the dataset used in the studies are available at https://github.com/wangpeihua1231/quantum-programming-platform.

Scientific contribution

This article reviews key applications of quantum computing within quantum chemistry, including ground state energy calculations, quantum dynamics, and Hamiltonian learning. We present a comprehensive comparison of the PennyLane and Qiskit platforms, examining their respective advantages and limitations to inform their suitability for both educational and research contexts in the rapidly advancing field of quantum computing. Additionally, we demonstrate foundational quantum circuits and introduce quantum machine learning models, encouraging readers to explore interdisciplinary applications that bridge quantum computing with broader scientific inquiry.

Introduction

Quantum computing is a cutting-edge field in computer science and physics that leverages the principles of quantum mechanics to perform computations at a scale and speed that traditional classical computers cannot match. It also can potentially solve complex problems intractable for classical computing methods [1]. At the heart of quantum computing lies the quantum bit or qubit, the fundamental unit of quantum information. Unlike classical bits, which can only have states of 0 or 1, a qubit can simultaneously have a state that is superposed of 0 and 1 [2]. This property enables quantum computers to explore many possibilities in parallel [3], making them exceptionally well-suited for solving complex problems that are infeasible for classical computers [4]. The quantum advantage refers to the exceptional capabilities of quantum computers in solving problems that are practically unsolvable with classical computers [5]. Quantum computers have significant long-term potential for widespread applications from logistics optimization to materials science, chemistry, and information security.

Quantum chemistry plays a pivotal role in various scientific domains, particularly in investigating and manipulating molecular systems at the atomic and electronic levels. Its application extends to studying biological macromolecular systems; it can model intricate phenomena such as enzyme catalysis [6], gene duplication, mutation, and drug-receptor interactions. Understanding the molecular and electronic structure of biological molecules at the quantum level is indispensable for designing enzymes, modifying enzyme structures, and synthesizing artificial enzymes. Moreover, quantum chemistry elucidates the mysteries of heredity and mutation [7], offering opportunities to regulate gene replication and mutation and obtain potential benefits for humanity. Additionally, the detailed examination of drug-receptor interactions through quantum chemical methods facilitates the design of new drugs with heightened efficacy and reduced toxicity [8], highlighting quantum chemistry’s broad and impactful applications in studying and manipulating biological phenomena.

Researchers and developers use quantum programming languages and frameworks to harness the power of quantum computers. Examples include PennyLane [9], Google’s Cirq [10], IBM’s Qiskit [11], NVIDIA’s cuQuantum [12], and Microsoft’s Q# [13] among others. These languages enable the design and simulation of quantum circuits, allowing researchers to develop quantum algorithms and experiment with quantum hardware. They are pivotal in advancing quantum computing research and practical applications.

IBM’s Qiskit [11] is an open-source quantum computing development framework that provides tools and libraries for working with quantum computers. It was developed by IBM and is designed to make it easier for researchers, developers, and enthusiasts to explore and experiment with quantum computing. Qiskit enables users to create, simulate, and run quantum programs on IBM’s cloud-based quantum computers. Users can also set up their local simulators for testing and development. Qiskit provides libraries and tools for quantum information science, including operations for quantum entanglement, quantum teleportation, and quantum error correction.

PennyLane [9] is an open-source quantum machine learning and computing software library. It was developed by Xanadu [9], a quantum technology company. PennyLane is unique because it focuses on the interface between quantum computing devices and machine learning frameworks, particularly popular libraries such as TensorFlow [14] and PyTorch [15]. There are several key features of PennyLane noted by Xanadu [9]: write-once, run-anywhere code; simulators and hardware in one place; an accompanying global research and coding community; built-in automatic differentiation of quantum circuits; the ability to perform machine learning on quantum hardware; and an “everything included” nature.

Our paper aims to comprehensively analyze and compare two prominent quantum computing and quantum machine learning frameworks, Qiskit and PennyLane, specifically focusing on their roles in education and research. We aim to provide valuable insights for educators, researchers, and quantum enthusiasts by evaluating the strengths and weaknesses of both frameworks in terms of accessibility, usability, educational resources, community support, and research capabilities. By examining their respective contributions to quantum education and their suitability for cutting-edge research applications, we aim to assist readers in making informed decisions about which framework aligns best with their specific needs and objectives in the rapidly evolving field of quantum technology.

Applications of quantum computing in quantum chemistry

Quantum simulation

Quantum computing has a notable advantage in simulating the microscopic physical characteristics involved in quantum mechanics [16], a task that grows in complexity exponentially with system size in traditional computing systems. Simulating quantum systems [17], directly manipulating physical quantum devices in the laboratory to emulate other quantum systems, can conduct accurate modeling of molecular structures and chemical reactions in quantum chemistry, materials science, and drug discovery. The problem size in this context is related to the simulated quantum system’s complexity, allowing for the computation of quantum dynamics and adaptability to large-scale systems.

Ground state energy calculation

The lowest energy state, also known as the ground state, is the state of a system with the lowest possible energy. Finding the ground state of a molecule involves solving the electronic Schrödinger equation. From the electronic ground state, we can determine the arrangement of the electrons in the molecular orbital that minimizes the system’s overall energy. Various methods, such as the Hartree–Fock [18], density functional theory (DFT) [19], and post-Hartree–Fock methods [20], have been employed for calculating electronic ground-state structures.

The goal of understanding the lowest energy states of molecular systems has driven innovative approaches in quantum chemistry simulations. A recent study introduced quantum HF/DFT-embedding algorithms as a promising avenue for scaling up electronic structure calculations in complex molecular systems [21]. An effective Hamiltonian construction incorporating mean field potentials to describe inactive electrons in an active space was outlined. Quantum HF/DFT-embedding algorithms can provide significant energy corrections to the HF and DFT calculations used as a reference, particularly in the strongly correlated limit and for systems the size of the oxirane molecule.

Quantum dynamics

Quantum dynamics [22] is the quantum counterpart of classical dynamics, which describes particles' motion, energy, and momentum changes according to classical mechanics. In quantum dynamics, particles such as electrons and photons exhibit particle-like and wave-like behaviors. The time-dependent Schrödinger equation illustrates how the quantum state of a system changes over time, and its solution provides insights into the evolution of the quantum state. Quantum dynamics is essential for understanding various phenomena in quantum mechanics, including the behavior of electrons in atoms, the formation and breaking of chemical bonds, and the properties of materials at the quantum level.

Recent advancements in quantum computational algorithms, particularly in adiabatic and nonadiabatic quantum dynamics [23], have addressed the longstanding challenge of simulating molecular dynamics within a comprehensive quantum framework. These innovations aim to address the exponential scaling inherent in the simulation of many-body quantum dynamics, providing valuable insights into the potential of the quantum advantage for applications in quantum chemistry, quantum computing, and quantum information science.

Hamiltonian learning

Hamiltonian learning provides a validation framework for ensuring the accuracy of quantum system descriptions [24]. In an isolated n-qubit system, the system's dynamics are typically governed by a known Hamiltonian [25]. However, when experimental observations exhibit significant deviations from theoretical predictions, this may indicate the presence of unaccounted interactions, such as an unidentified qubit coupling to the system or an unknown energy exchange pathway between the system and its environment. These discrepancies suggest potential inaccuracies in the assumed Hamiltonian, necessitating a systematic approach for validation and refinement. By leveraging expectation values, Hamiltonian learning enables a direct comparison between a theoretically defined Hamiltonian and the one inferred from experimental data, facilitating the identification of errors arising from (1) incorrect parameterization in the defined Hamiltonian or (2) operational imperfections in quantum devices.

Unlike conventional methods that rely on predefined Hamiltonians to predict quantum behavior [25], Hamiltonian learning operates in reverse—deducing the underlying Hamiltonian directly from observational data [26]. One approach to reconstructing the Hamiltonian involves expressing it in the Pauli basis and utilizing measurements on random states to generate a time-series dataset [26]. This approach exemplifies how Hamiltonian learning can uncover deviations from expected system dynamics, making it a crucial tool for validating and optimizing quantum models. By systematically refining theoretical descriptions and identifying errors in quantum devices, Hamiltonian learning contributes to the broader advancement of quantum computing and quantum information science.

Quantum machine learning and optimization

Given datasets and the cost function, quantum computers show potential in solving optimization problems by minimizing the predefined cost functions. Quantum algorithms such as the quantum approximate optimization algorithm (QAOA) [27] aim to find optimal solutions for such problems. Additionally, if the target is to predict the target value or label of a dataset, quantum machine learning algorithms, such as the quantum support vector machine [28], which achieves exponential [29] and quadratic speed-up through Grover's search algorithm [30], contribute to solving linear algebra problems more efficiently. Notably, various quantum algorithms, such as the variational quantum eigensolver (VQE) [31] and quantum adiabatic algorithm (QAA) [32], play roles in addressing different problem domains, contributing to the diverse applications of quantum computing.

Nevertheless, quantum computing faces numerous challenges, particularly in algorithm design, which necessitates fundamentally different approaches from those used in classical computing. The advantages of current quantum computers are mostly demonstrated through specific, carefully chosen problems due to the limited error correction capabilities of quantum computers [33], which correct errors by using additional qubits among the limited number available.

Methods

The code for this study was written in Python using Qiskit (version 1.4.1) and PennyLane (version 0.41.0). The usage examples, half adder and machine learning were adapted from their official tutorials.

To compare the two quantum programming languages quantitatively, we conducted two types of analysis:

• 1. Line count analysis – measuring the total number of lines required to implement each example.

• 2. Dependency analysis – counting the number of required libraries.

Both analyses were performed on the two usage examples implemented in both languages, resulting in eight data points (2 × 2 × 2 = 8) for comparison and discussion. To ensure a fair comparison, we excluded non-essential code related to dataset analysis and visualization, retaining only the core implementation necessary to execute the experiments.

Quantum programming languages: Qiskit and PennyLane

We analyze the difference between the two quantum programming languages in several respects: basic usage, visualization, implementation of tasks, available simulators and real devices, local environment construction, and official tutorials. Table 1 summarizes the contents that we introduce in this section. Table 2 lists the line counts and the number of libraries required in the two usage examples described in the following sections.

Table 1 Summary of comparisons between Qiskit and PennyLane. Qiskit is more concise when using quantum gates and circuits, whereas PennyLane offers greater clarity

Table 2 Quantitative analysis between usage examples in Qiskit and PennyLane. The line count excludes empty lines and comments

PennyLane is user-friendly in local environment construction

Building a local environment for basic usage of PennyLane is simple, as we can follow the official instructions and go through tutorials without problems. In contrast, beginners often face compatibility issues when learning Qiskit locally due to the multiple external libraries packaged with Qiskit. Sometimes, the Python version must be changed to align with the specific requirements of different packages. Some of these packages might require a higher version of Python, whereas others are compatible only with lower versions. Balancing these requirements often necessitates a middle-ground version of Python that can cater to both needs. This can be a significant difficulty for programming novices, as switching between different Python versions to meet varying compatibility needs may require using specific Python version management tools or implementing virtual environments. The complexity of managing these different versions adds a layer of difficulty to the learning process, especially for those just starting in the field.

PennyLane’s tutorial has a gentler learning curve for beginners

The Qiskit Textbook imparts foundational knowledge of quantum computation and programming. This comprehensive introduction covers the theoretical aspects of quantum computation and its practical implementation in Qiskit. For complete beginners, the learning curve might initially be steep. However, with detailed explanations and examples, progress may become smoother once the basic concepts become familiar. In contrast, PennyLane's Codebook layout shows coding challenges on the left and textbook content on the right. After grasping the concepts from the right side, learners can address the challenges on the left. The learning curve might be gentler in this case for those with some quantum computing knowledge. This platform offers a direct introduction if learners are primarily interested in quantum machine learning.

Qiskit has better visualization and a graphical user interface

When used in conjunction with Jupyter [34], Qiskit provides visualization tools that are particularly beginner-friendly. With just a single line of code, users can display features such as quantum circuit diagrams, statevectors (Fig. 1, Fig. 2a), and histograms for experimental results, allowing quantum computing newcomers to focus on learning without the distractions of visualization complexities. PennyLane, however, is more focused on quantum machine learning. While the statevector of a circuit in PennyLane can be displayed with a single line of code (Fig. 2b), its visualization capabilities are generally not as straightforward as those of Qiskit. For instance, visualizing a statevector in PennyLane requires additional efforts to use modules such as Matplotlib, unlike Qiskit, which offers a more intuitive visualization with its LaTeX parameter.

Fig. 1

Visualization of a statevector in Qiskit with the LaTeX parameter. The compact math formulation is friendlier to beginners

Fig. 2

Visualization of a statevector with complex numbers. The 2-qubit statevector is shown with four complex numbers in a set. a Visualization using Qiskit without parameter. b Visualization using PennyLane

IBM Quantum Composer provides a web-based GUI (Fig. 3) for building quantum circuits by dragging gates to the lines representing the quantum circuit. Tutorials are shown on the left, and the current quantum states are visualized at the bottom. In the tutorial for building a Bell state, the visualization updates dynamically with any circuit change. On the right side is the coding area, which shows the OpenQASM or read-only Qiskit code. The circuit can be run on a real quantum device by clicking the “Setup and run” button in the upper-right corner and selecting available quantum devices. For newcomers unfamiliar with programming languages, IBM’s Quantum Composer is a user-friendly learning platform for understanding how gates and codes work.

Fig. 3

Screenshot of IBM Quantum Composer after completing the tutorial “Create your first circuit walkthrough.” Building a quantum circuit with the online graphical user interface is intuitive. The code area on the right side reflects the contents of the quantum circuit and is updated with every change

PennyLane accepts various real devices from a broad range of quantum providers

To run Qiskit on real devices, IBM provides several superconducting unitary quantum computers to registered users with a free open plan. One 127-qubit system (ibm_brisbane) and three 7-qubit systems (ibm_perth, ibm_lagos, and ibm_nairobi) are available to free users as of the date of Oct 15, 2023. Free users have up to 10 min of system execution time per month.

Running PennyLane on real devices requires plugins such as Qiskit to gain access to external quantum devices. The PennyLane development team supports popular libraries, including IBM’s Qiskit, Amazon Bracket, Google’s Cirq, Microsoft QDK, Honeywell, IonQ, and Rigetti Forest. It is even possible to create quantum applications across different quantum platforms via PennyLane. The real quantum resources depend on the user when using PennyLane.

Qiskit is better for education to beginners, and PennyLane has the potential for teaching advanced quantum computing concepts

In Qiskit, while setting up a local environment and understanding the theoretical explanations in tutorials can be challenging, beginners may find it easier to construct quantum circuits using the web-based IBM Quantum Composer, allowing them to intuitively drag and drop gates. Additionally, Qiskit provides high-level functions that simplify circuit implementation and enable execution on real quantum devices through its open-access plan. In contrast, PennyLane explicitly defines nearly every step in the workflow, allowing users to grasp fundamental concepts and understand the detailed operations performed at each computation stage, making it well-suited for research applications.

Usage examples: half adder

This case study examines experiments taught in the Qiskit textbook introduction course and contrasts its implementations in Qiskit and PennyLane.

The introduction course in the Qiskit textbook introduces the "half adder" operation, which adds two single bits and measures the result. This process educates learners on the NOT, CNOT, and Toffoli gates. After designing the quantum circuit and specifying the measurement in Qiskit, a simulator is needed to replicate the behavior of the quantum circuit on a real device. If learners aim to implement the half adder locally, the first obstacle is that simulator-related modules cannot be imported. Since the course does not address this issue, students must independently identify and rectify the problem. Only after installing the correct modules can the operation run smoothly.

In contrast, implementing the half adder in PennyLane allows the quantum function to return the expected value of the PauliZ prediction. This method differs from platforms such as Qiskit, which offer a more intuitive result presentation. Specifically, for an input of (1,1) with the expected output '10', separate measurements on each qubit of the half adder results in the states |1⟩ and |0⟩. The PauliZ measurement represents these states as -1 and 1, respectively. This outcome is attributed to the nature of the PauliZ gate: it keeps the base state |0⟩ unchanged and maps the state |1⟩ to −|1⟩. Therefore, while this measurement method offers precision, understanding the results requires some familiarity with PauliZ, unlike the more straightforward interpretation in Qiskit.

Usage examples: machine learning

To analyze the advantages and limitations of Qiskit and PennyLane in machine learning, we referred to the tutorials [35, 36] and built two kernel-based quantum support vector machine (QSVM). The AqSolDB dataset, a widely used curated solubility dataset from Sorkun’s study [37], was used in this study. The workflows used to build a quantum regressor on real data are similar in both tutorials, including data preparation, quantum circuit construction, kernel matrix generation, and validation (Fig. 4).

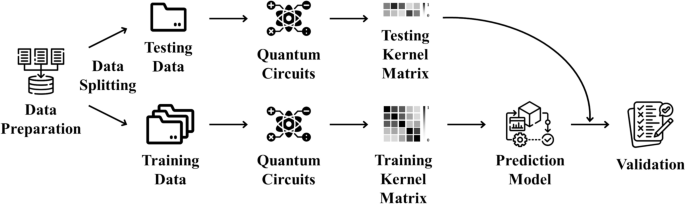

Fig. 4

Workflow for building a quantum prediction model. Quantum circuits are reversible. Applying the inverse of an executed quantum circuit restores the initial quantum state. For each pair of molecules in the training data, one molecule’s features are fed into the quantum circuit, while the other molecule’s features reverse the quantum circuit. The probability of measuring the initial states represents the similarity between the two molecules. A classical optimizer then uses the resulting kernel matrix to construct the prediction model

The data preparation process involves scaling the features to a range between 0 and 1, then splitting the dataset into training and testing sets. The AqSolDB dataset contains 9,983 molecules, each with 17 molecular features. The QSVM regressor's goal is to predict an unseen molecule's solubility based on its features and the training data. We used a subset of 300 compounds with 4 features to minimize training time for demonstration purposes.

The first component of the quantum circuit to calculate the kernel matrix is feature preparation, also referred to as feature mapping or state preparation. The scaled feature vectors are input into the quantum circuits. An overview of the feature mapping quantum circuit diagrams for Qiskit and PennyLane is shown in the upper parts of Fig. 5a and b.

Rotational gates, such as RX and RZ, are commonly employed in feature preparation, with the rotation angles determined by the input features. In Qiskit, the feature preparation part (Fig. 5a) employs the ZZ feature map, where the x variables represent the input features of a molecule. The cascades of CNOT gates entangle all qubits. PennyLane’s circuit visualization results, generated by the built-in pennylane.draw function, require the input angles from the data preparation step (Fig. 5b).

Fig. 5

Visualization of quantum circuits in feature mapping step. a Four-qubit ZZ feature map in Qiskit. The x variables stand for the input features of the data. b The visualization of four-qubit AngleEmbedding circuits defined in PennyLane. The angles are derived from the first data record used in the usage example

The complete quantum circuit comprises a feature mapping and its corresponding reversed counterpart. In reversible quantum circuits, applying all gates in reverse to a quantum state restores the initial quantum state. When the features are input into the forward feature mapping circuit, and the reversed feature mapping is applied using another molecule’s features, the probability of retrieving the initial state is measured. This process, called ComputeAndUncompute in Qiskit, measures the fidelity between the forward and reversed quantum circuits. Fidelity, ranging from 0 to 1, indicates how closely the forward and reversed circuits match, thereby measuring similarity between the two molecules. The similarity between all pairs of molecules in the training set is aggregated to form the training kernel matrix. The testing kernel matrix is constructed from the fidelity between each testing molecule and all the training molecules.

Classical optimizers, such as support vector machine (SVM), based on the training kernel matrix and target values (solubility) to maximize the training accuracy. Finally, model performance is validated using the testing kernel matrix to assess the classifier's ability to predict the solubility of unseen molecules.

In summary, Qiskit wraps several trivial procedures in quantum machine learning into functions that users can readily call. For beginners, it is much easier to understand the meaning of each line of the code and build a workable classifier in a short time. On the other hand, PennyLane's tutorial describes building almost everything in detail when constructing a quantum regressor. This might benefit experienced users by allowing them to learn all the adjustable parts and customize their prediction models.

Limitations of this study

Quantum programming languages continuously evolve, with new versions addressing existing issues, introducing additional modules, and enhancing usability. For example, PennyLane can utilize the Qiskit plugin to achieve similar statevector and circuit visualizations. Additionally, experienced users may find it relatively easy to switch between platforms as needed. Third-party libraries built on these frameworks may extend functionality or simplify usage by providing higher-level abstractions.

Our analysis is primarily based on official tutorials, which may not fully represent all possible use cases. While we have tried to quantify our comparisons, certain aspects remain qualitative, introducing potential bias. To mitigate this, we included an evaluation by graduate students new to quantum computing, ensuring a fair comparison of the learning experience. However, individual learning styles and prior knowledge variations may influence the results.

As demonstrated in the usage examples of kernel-based quantum machine learning, reducing the number of molecules and features is often necessary to achieve affordable training times for tutorials, which may sacrifice the accuracy of the resulting prediction models. This trade-off arises because simulating quantum circuits on classical computers requires significantly more time and memory than classical machine learning methods. However, this challenge can be addressed with real quantum computing. While current quantum devices may experience errors due to hardware limitations, quantum error mitigation techniques have been developed and can be readily applied using Qiskit and PennyLane. As hardware continues to improve each year, the future of quantum computing in machine learning looks promising.

Conclusion

Comparing these two programming languages, Qiskit is better for quantum education. It wraps numerous intricate procedures into easily callable functions, enabling beginners to quickly comprehend every line of code and construct operational quantum circuits quickly. IBM’s Quantum Composer is a noteworthy feature offering a web-based graphical interface. This tool allows students to craft quantum circuits by dragging and dropping gates. For those unfamiliar with programming, it offers a clear view of the workings of various quantum gates and circuits.

In contrast, PennyLane is better for research applications. While Qiskit offers streamlined solutions, PennyLane's quantum machine learning tutorials delve deeply into every detail of building variational quantum classifiers. This explanatory depth allows seasoned researchers in quantum machine learning to fully grasp all tunable aspects of the programming language, empowering them to customize models to their requirements. This profound flexibility is an outstanding tool for researchers interested in in-depth study and model fine-tuning.

Users can decide between these two quantum programming languages based on their needs and proficiency levels. Qiskit and PennyLane are premier choices in today's quantum computing domain.
