Integrating QSAR modelling with reinforcement learning for Syk inhibitor discovery

Abstract

Spleen tyrosine kinase (Syk) is a crucial mediator of inflammatory processes and a promising therapeutic target for the management of autoimmune disorders, such as immune thrombocytopenia. While several Syk inhibitors are known to date, their efficacy and safety profiles remain suboptimal, necessitating the exploration of novel compounds. The study introduces a novel deep reinforcement learning strategy for drug discovery, specifically designed to identify new Syk inhibitors. The approach integrates quantitative structure–activity relationship (QSAR) predictions with generative modelling, employing a stacking-ensemble model that achieves a correlation coefficient of 0.78. From over 78,000 molecules generated by this methodology, we identified 139 promising candidates with high predicted potency, binding affinity and optimal drug-likeness properties, demonstrating structural novelty while maintaining essential Syk inhibitor characteristics. Our approach establishes a versatile framework for accelerated drug discovery, which is particularly valuable for the development of rare disease therapeutics.

Scientific contribution

The study presents the first application of QSAR-guided reinforcement learning for Syk inhibitor discovery, yielding structurally novel candidates with predicted high potency. The presented methodology can be adapted for other therapeutic targets, potentially accelerating the drug development process.

Introduction

Spleen tyrosine kinase (Syk) is an intracellular nonreceptor protein that belongs to the tyrosine kinase family. Its expression is observed in various immune cells involved in mediating inflammatory responses, including B and T cells, fibroblast-like synoviocytes, and tissue macrophages [1, 2]. Activated Syk triggers a cascade of intracellular signalling pathways, leading to the activation of transcription factors and the expression of genes that perform various biological functions [3, 4].

Syk hyperactivation is observed in many autoimmune, allergic and autoinflammatory diseases, as well as some types of cancer and cardiovascular diseases [3, 5, 6]. This broad involvement in disease pathology makes Syk an attractive therapeutic target for the development of novel drugs [7, 8]. One of the diseases most in need of new Syk inhibitor structures is immune thrombocytopenia (ITP). ITP is a rare autoimmune disorder characterized by a low platelet count in the blood [9]. Although various treatment options exist, Syk inhibitors represent one of the most promising and potentially long-term effective therapeutic approaches [10].

Currently, several Syk inhibitors are undergoing various stages of clinical trials [6]. Despite their potential, the development of potent Syk inhibitors poses certain challenges ranging from avoiding off-target effects on related kinases to the lack of efficacy seen in clinical trials [8, 11]. Clinical trials have reported instances of hypertension, neutropenia, and diarrhea associated with its use [12]. To date, the only Syk inhibitor approved for the treatment of ITP is fostamatinib [13]. However, its development and clinical application have been hindered by safety concerns and inconsistent efficacy data [14]. These challenges underscore the need for further optimization of Syk inhibitors, including improving selectivity, enhancing drug-like properties, and advancing our understanding of disease mechanisms. In this regard, the search for more effective and safer Syk inhibitors is still underway [3].

In recent years, various computational methods and machine learning approaches have become indispensable tools in biomedical research and pharmaceutical development [15,16,17,18,19]. Advancements in these methods have led scientists to focus on the search for new molecules through techniques such as quantitative structure–activity relationship (QSAR) modelling, pharmacophore modelling and molecular docking [20,21,22,23]. These methods significantly accelerate the development of novel compounds for targeted therapy by enabling the prediction of the biological activity of untested molecules [18].

Broadly, there are two main computational approaches for identification of new compounds with potential biological activity: screening existing drug-like databases or data-driven generative design of small molecules with desired properties [24] These approaches are closely interrelated since the models utilized for screening chemical databases are also leveraged for the in silico assessment of generated structures for the presence of the desired biological activity [25]. In particular, generative molecular design leverages a variety of machine learning methodologies, including generative adversarial networks (GANs), variational autoencoders (VAEs), and transformer-based approaches [19, 26,27,28]. Each one offers unique advantages: GANs generate structurally diverse molecules, VAEs enable latent space manipulation, and recurrent neural networks (RNNs) excel at sequence-based molecular generation [29].

A special place in this field is occupied by the reinforcement learning (RL) strategy. This approach is particularly effective for developing targeted inhibitors, as it facilitates the fine-tuning of molecular properties to meet the desired criteria [30]. Recent advancements in RL-based de novo molecular generation, such as the fragment-based RL forward synthesis approach proposed by Cai et al. [31], have underscored the potential of RL in drug discovery. This method optimizes molecular candidates by growing them fragment-by-fragment via curated reaction templates, ensuring the synthetic feasibility, drug-likeness, and target affinity of the generated molecules. Notably, this approach successfully identified new drug molecules that were successfully synthesized and exhibited improved activity compared with known compounds.

Available data on recognized Syk inhibitors enables the application of the approaches described above for the development of novel compounds exhibiting inhibitory activity towards Syk [32]. Previously, researchers have conducted several virtual screenings of current drug-like databases via pharmacophore modelling and molecular docking [33,34,35]. For example, Wang et al. [35] combined computer-based screening with in vitro tests to identify substances from the traditional Chinese medicine database. This effort led to the discovery of Tanshinone I, a promising compound that is now undergoing further study [36, 37]. In another study, Xie et al. [38] created a 3D pharmacophore model based on known Syk inhibitors and filtered potential candidates using Lipinski's rule and molecular docking. Among the 30 tested substances, 6 showed good ability to block Syk activity. Additionally, classical machine learning approaches for identifying Syk inhibitors were also considered [39].

Despite these advancements, the generative de novo design of Syk inhibitors has not been previously employed. Inspired by the success of RL-based methodologies, this study presents an approach to the design of new Syk inhibitors by enhancing the FREED +  + deep reinforcement learning model (Fig. 1). We used FREED++ as the baseline generative model because of its multiparameter optimization capabilities, specifically its ability to incorporate docking scores – a critical metric for effective inhibitor design. Furthermore, the model's fragment-based molecular construction strategy substantially increases the likelihood of synthetic accessibility, another important factor for later stages of drug development. We adapted the reward function of FREED++ to explicitly consider the target properties of Syk inhibitors, advancing the capabilities of the original generative approach. For that, we trained several machine learning models to predict the negative log of the IC50 and implemented a stacking ensemble to achieve R² = 0.78 on the test set. Notably, these results establish a new state of the art for the prediction of Syk inhibitor biological activity. Our research not only demonstrates the application of cutting-edge generative models to Syk inhibitor design but also introduces a methodology for adapting and improving generative algorithms to address specific therapeutic targets, thereby pushing the boundaries of computational drug discovery.

Fig. 1

Computational workflow

Materials and methods

Data collection and processing

A dataset of 3,513 Syk inhibitors with an experimentally determined half maximal inhibitory concentration value (IC50) was obtained from the ChEMBL database [40] (target identifier: CHEMBL2599). Within this dataset, 71% of the samples were retrieved from the BindingDB database [41], mainly comprising patent literature, while the remaining 29% were drawn from scientific literature. After preprocessing, including duplicate and outlier removal and inaccurate activity data filtering, a total of 3176 molecules were retained. Duplicated compounds were identified on the basis of SMILES representations. For duplicates with multiple IC50 measurements, the values were averaged if all were within 10% of the median. If the variance exceeded 10% of the median, the lowest IC50 was retained for each compound to avoid the exclusion of potentially potent inhibitors. For machine learning model development, IC50 values were converted to pIC50 values by applying the negative logarithm, ensuring a normalized data distribution suitable for predictive modelling. The distribution of pIC50 values in the final dataset is provided in Sect. 1 of the Supplementary Materials.

This curated dataset comprises unique molecules, of which 1,642 are highly potent inhibitors (IC50 < 50 nM), 999 are moderately active (50 nM < IC50 < 500 nM), and 535 are lowly active (IC50 > 500 nM). To represent molecular structures, various methods, both novel and generally accepted, were evaluated via the Pycaret autoML framework to identify the optimal approach. The obtained structure‒activity data formed the foundation for developing a machine learning regression model to predict pIC50 values.

Bioactivity prediction

The following classical machine learning models have been employed to predict the inhibitory ability of drug molecules: Random Forest Regression (RFR), Hist Gradient Boosting (HGB), eXtreme Gradient Boosting (XGB) and Support Vector Regression (SVR). These models were selected due to their proven efficacy in addressing regression tasks within the pharmaceutical industry [42, 43]. Parameter optimization for these models was conducted utilizing the Optuna framework [44]. A comprehensive description of this process is provided in Sect.  3 of the Supplementary Materials.

RFR, HGB and XGB refer to the ensemble learning methods. These methods involve constructing multiple decision trees and combining them to achieve improved predictive performance compared with individual decision trees. SVR, a regression analysis method based on support vectors, is adept at handling non-linear dependencies and high-dimensional data [45], making it well-suited for accurately predicting efficacy based on long binary vectors – molecular fingerprints.

To further improve the predictive performance, we implemented a stacking ensemble approach. This method combines multiple base models into a meta-regressor leveraging the individual strengths of each model to create a more robust and accurate predictive framework. The top-performing algorithms from our initial evaluation were selected as the base models, while a standard linear regression model was employed as the final estimator in the ensemble. By aggregating the predictions of diverse models, the stacking approach enhances overall accuracy and robustness.

To evaluate and compare the predictive performance of all models, individual models (RFR, HGB, XGB, SVR) as well as a stacking ensemble with fivefold cross-validation (CV) were applied to ensure robust performance estimation. The performance metrics used for evaluation were the coefficient of determination (R-squared) and the mean squared error (MSE).

Molecules generation

We adopted an RL approach for de novo drug molecule generation, prioritizing desired chemical space and multi-property optimization [46, 47]. This was achieved by incorporating docking score, drug-likeness, and bioactivity (specifically pIC50) into the RL reward function.

3fqs protein from the PDB database [48] was selected as the target for generation of new inhibitor molecules. This protein is known to be complexed with R406, an active metabolite that previously served as the basis for the most commonly used agent for inhibiting Syk, Fostamatinib [13].

Potential ligand binding sites within the protein structure were identified using the following procedure: first, the three-dimensional structure of the ligand was extracted from the corresponding PDB file; then, the centroid of the bounding parallelepiped was calculated by averaging the coordinates of all ligand atoms. The dimensions of the parallelepiped along each coordinate axis were estimated by adding the maximum deviation of the ligand atom coordinates from the respective centroid coordinate plus 4 Å. A similar method for preparing potential ligand binding sites was used by the authors of FREED++ [49].

The CReM-ZINC fragment library from FREED++ was used as the source library of molecular fragments. The reward functions used for structure generation employed the following parameters: lipophilicity in the form of octanol–water partition coefficient (logP), the number of heavy atoms in the molecule (HeavyAtomCount), the number of hydrogen bond acceptors (NumHAcceptors) and donors (NumHDonors), as well as filters to exclude potentially toxic and undesirable pharmacophoric groups and fragments (PAINS, SureChEMBL, Glaxo). The number of epochs was set to 200, which consistently resulted in around 13 thousand generated molecules.

To ensure the generation of potent Syk inhibitor structures, we upgraded the reward function in a way that it takes into account compound bioactivity. This adaptation, which uses the pretrained pIC50 prediction model, was incorporated into the FREED++ reward function as an additional objective parameter.

Evaluation metrics for the generated molecules

After generation, a comprehensive assessment and filtering process was applied. First, any structures that caused errors in the RDKit software were eliminated to ensure data integrity. For the remaining molecules, several key properties were calculated to evaluate their potential as drug candidates: synthetic accessibility score [50] (SAscore < 6), quantitative estimate of drug-likeness [51] (QED > 0.67), and absence of toxic fragments (the number of toxic groups equals 0). SAscore estimates the ease of molecule synthesis, with lower scores indicating simpler synthetic routes. QED score reflects how closely a compound’s properties match those of known drugs, with higher scores indicating greater drug-likeness. Finally, the absence of toxic fragments ensures the exclusion of molecules containing substructures associated with known toxicity, thus enhancing the safety profile of potential drug candidates. The thresholds for these selection criteria were established based on the parameters utilized in the ADMETLAB 3.0 platform [52].

To evaluate the effectiveness of the generated molecules, the developed predictive model for Syk inhibition efficiency (pIC50) was applied. A pIC50 threshold of 7.40 was chosen to prioritize molecules with greater inhibitory potency than existing marketed drugs [53]. Furthermore, the docking score (DS), calculated during the generation process, was used as an additional filtering criterion, with only molecules achieving DS values below -7 kcal/mol being retained. This threshold aligns with established literature, where effective Syk inhibitors consistently show DS values between -7 kcal/mol and -10 kcal/mol [54,55,56,57], and represents a standard cutoff for identifying compounds with promising binding affinity.

Results and discussion

Predictive QSAR model

We developed a machine learning regression model to predict the inhibitory potency from molecular structure. This approach, known as QSAR modelling, utilizes the half-maximal inhibitory concentration value (pIC50) as a quantitative measure of inhibitory potency. The dataset was split into training and test sets in a 4:1 ratio, ensuring similar distributions of molecular structures and pIC50 values, as detailed in Sect. 2 of the Supplementary Materials.

To construct the QSAR model, we evaluated five molecular representation methods using the PyCaret autoML framework. Among these, extended-connectivity fingerprints (ECFPs) demonstrated the best performance metrics (Table 1). Molecular structures were encoded as ECFPs using the RDKit cheminformatics software package. This encoded structure–activity data formed the foundation for QSAR modelling, where pIC50 values are used as the target variable to quantify inhibitory potency.

Table 1 Comparison of molecules representation methods using PyCaret autoML framework

Four most robust and widely used ML models were chosen for constructing the predictive model, namely, HGB, RF, XGB and SVR. Initially, all models were trained with their default parameters. Subsequently, hyperparameter optimization using the Optuna library significantly improved the performance of all four algorithms. The performance metrics of the optimized models are outlined in Table 2.

Table 2 Performance metrics of the base models on the test and train dataset with optimized hyperparameters

Based on the optimization results, the top-performing models—RF, XGB, and SVR—were selected as base learners for the stacking ensemble. We implemented a stacking ensemble technique by combining these base models. A meta-regressor, specifically a standard linear regression model, was used as the final estimator in the stacking ensemble (Fig. 2). The stacking regressor was implemented using the StackingRegressor class from scikit-learn, with fivefold CV applied during training to ensure robust performance estimation. After CV, the stacking regressor was trained on the entire training set, achieving the best predictive performance on the test set: the lowest MSE equal of 0.27, and the highest R-squared of 0.78. Based on these results, we opted for StackingRegressor as our primary model for estimating pIC50 values of novel Syk inhibitors.

Fig. 2

Development of machine learning models. A Stacking regressor architecture. B Scatter plot of the stacking regressor on the train and test sets

Generation of new Syk inhibitors

Experiments on the generation of new Syk inhibitors involved three distinct approaches: (1) baseline FREED++ model with standard reward function parameters, (2) our approach incorporating the pre-trained pIC50 prediction model into the FREED++ reward function, and (3) the utilization of starting fragments regardless of the aforementioned generative models (Fig. 3A). The selection of starting fragments was based on a dataset of known inhibitors, as described in Sect. 4 of the Supplementary materials.

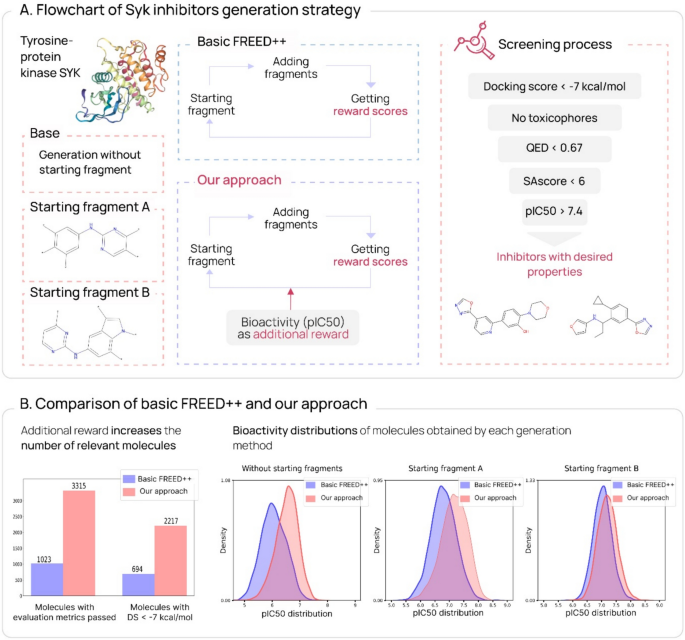

Fig. 3

A Flowchart of our inhibitors generation strategy. Starting fragments used for molecule generation. The strategy for selecting fragments is described in more detail in Sect. 4 of the Supplementary materials. B Comparison of basic and improved FREED++ 

We compared the outcomes of the generation experiments by assessing the number of molecules passing the screening criteria (Sect. “Evaluation metrics for the generated molecules”) after eliminating invalid and duplicate structures. The outcomes of this comparative analysis are summarized in Table 3. Incorporating the pre-trained pIC50 prediction model into the reward function not only preserved molecular uniqueness but also increased the number of valid molecules generated. Our approach demonstrated better performance across all evaluation criteria compared with the baseline version, yielding a greater number of molecules with drug-like properties and improved pIC50 and DS values. Notably, the total percentage of recruited active molecules increased from 3.56% in the baseline model to 13.21% with our approach.

Table 3 The generation performance of basic FREED++ and our approach

Further analysis focused on the subset of valid, drug-like molecules with pIC50 > 7.40 and DS < − 7 kcal/mol, which represent the most promising Syk inhibitors. The results from all six experiments are presented in Table 4. While the baseline FREED++ model generated a larger quantity of molecules with scaffold A, our approach increased the total number of promising inhibitors and significantly enhanced their structural diversity. This improvement was evidenced by the number of molecules of different scaffolds and the Tanimoto similarity between the molecular fingerprints of the generated molecules (0.274 by our approach vs. 0.354 by FREED++).

Table 4 The number of generated molecules passing screening thresholds

Comparing our approach to the baseline model, we also observed a clear shift in the pIC50 distribution toward higher values, regardless of the starting fragment (Fig. 3B). This shift highlights the improved potency of the generated molecules. The statistical significance of these results was confirmed by the Mann–Whitney tests (see Sect. 5 of the Supplementary materials).

The integration of the QSAR model in the reward function has proven effective for the de novo design of potential Syk inhibitors. In the future, this approach can be further refined: as more experimental data on selectivity and off-target effects become available, the reward function can be modified to include those additional desirable properties of Syk inhibitors. More generally, the flexibility of our approach allows for fine-tuning the generative process to produce molecules of specific therapeutic requirements.

Importantly, the proposed methodology is not limited to Syk inhibitors. In principle, it can be generalized to a wide range of therapeutic targets provided the biological activity data is available for training. However, it is important to recognize the fundamental limitations of this methodology. The quality of the generated molecules heavily depends on the accuracy of the underlying QSAR model and the ultimate structure of the reward function. For instance, the QSAR model's performance is constrained by the composition and biases of the training data, which comprised patent-derived and literature-derived data. Both sources primarily report successful molecules, as negative results are rarely published, leading to a model trained mostly on "successful" candidates. This bias may hinder generalization to less promising molecules, potentially causing overly optimistic predictions. Furthermore, insights from the scaffold-clustering analysis conducted in this study (see Sect. 4 of the Supplementary Materials) revealed that Syk inhibitors in the training data tend to share common structural fragments. This structural homogeneity poses a challenge for the QSAR model, as it may struggle to make reliable predictions for molecules with significantly different scaffolds. Generative process may prioritize molecules with familiar scaffolds, potentially reducing the novelty and diversity of the generated candidates. Finally, predictions made by the proposed methodology require comprehensive experimental validation, as no computational approach is capable of capturing all nuances of drug-target interactions.

To address these limitations, future work could focus on mitigating biases in the training data. For instance, providing models with essential negative examples could enhance their ability to predict properties across a broader range of molecular outcomes. Additionally, the reward function could be refined to encourage generation of molecules with novel scaffolds. Most importantly, we intend to conduct in vitro characterization of the generated compounds to assess their potential for therapeutic applications.

Property analysis of potential inhibitors

Through a rigorous screening process of the 78,012 generated molecules, we successfully identified 139 compounds  (see Sect. 6 of the Supplementary Materials) that satisfied the predefined selection criteria outlined in Sect. “Evaluation metrics for the generated molecules”.

To further validate the molecular properties of the generated candidates, we compared them to known inhibitors with comparable potency (pIC50 > 7.4) from the dataset used to train the QSAR model. Key investigated parameters included the partition coefficient (LogP), molecular weight (MW), number of hydrogen bond acceptors and donors (HBA and HBD), topological polar surface area (TPSA) and number of rotatable bonds (RotatableBonds). Distributions of most molecular descriptors for the generated molecules aligned well with those of experimentally confirmed compounds, except for the molecular weight and the number of rotatable bonds, which both shifted towards lower values (Fig. 4A–F). However, this reduction may confer advantageous pharmacokinetic properties and enhanced bioavailability for potential drug candidates [63, 64].

Fig. 4

Distribution of the calculated molecular properties of generated molecules (blue) and ChEMBL molecules (red): A Log P, B Molecular weight, C number of HBAs, D number of HBDs, E number of rotatable bonds, F TPSA, G QED, H Tanimoto similarity distribution between the generated set and known compounds

To assess the structural novelty of the generated candidate molecules in comparison with previously reported compounds, a set of 122 molecules was selected based on the criteria employed for candidate screening. The analysis of Tanimoto similarity between the two sets revealed that 98% of the molecular pairs showed similarity coefficients lower than 0.3 (Fig. 4H). These findings highlight that the generated molecules exhibit structural novelty while maintaining drug-like properties comparable to those of known compounds.

One of the main concerns with Syk inhibitors undergoing clinical trials is the risk of adverse events. To explore this issue, we assessed fostamatinib, a clinically tested Syk inhibitor, using the same criteria employed in the screening of the generated molecules. Our analysis revealed that fostamatinib has a low quantitative estimation of drug-likeness (QED) score of 0.256. In contrast, our set of generated molecules demonstrates favourable characteristics in these aspects (Fig. 4G).

Conclusion

In this study, we successfully applied a novel approach combining deep reinforcement learning with QSAR predictive model to design new potential Syk inhibitors. This method enabled us to generate a set of 139 promising candidate molecules with high predicted potency and favourable drug-like properties. Importantly, the generated compounds exhibited structural novelty while maintaining molecular characteristics similar to known Syk inhibitors, potentially addressing the limitations of existing drugs such as fostamatinib.

By incorporating QSAR predictions into the generative process, we effectively guided molecular generation toward the desired chemical space, resulting in an increased yield of high-quality drug candidates. This methodology not only accelerates the early stages of drug discovery for Syk inhibitors but also presents a versatile framework that can be adapted for other therapeutic targets. Its applicability is particularly promising for orphan diseases, such as immune thrombocytopenia, where novel therapies are urgently needed. Our future work will focus on experimental validation of the top candidate molecules and further refinements of the generative model. Additionally, we look forward to extending our approach to other therapeutic targets, such as Bruton's tyrosine kinase or Forkhead box M1.
